$9,250.00
20″, 1″ Connection, with pump (0.9 kW) & Mains to Rain Controller

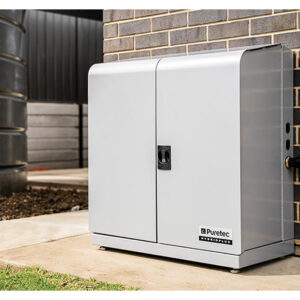

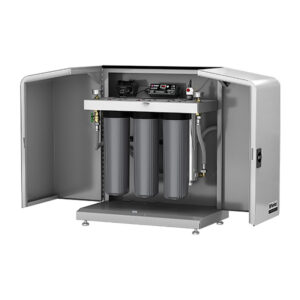

The Puretec Hybrid-P12 is an all-in-one filtration system including pump, 3 stage filtration and finishing with UV sterilisation. This sleek, practical and high-quality system ensures you have pressurised safe and delicious rainwater. The patented HybridPlus system is designed to sit neatly against a wall, fence or tank, or can also be freestanding. It features a lockable cabinet with gull-wing style access doors for ease of access for maintenance and also incorporates adjustable feet to ensure a neat and tidy finished installation.
Specifications
| Replacement Cartridges | |
| Stage 1 filtration | – PL05MP2 |
| Stage 2 filtration | – CB05MP2 |
| Stage 3 filtration | – PX01MP2 |
| UV Lamp | RL6 |
| Quartz Sleeve | RQS6 |
| Grundfos pump model | CMB-SP 5-47 |
| Pressure controller | PM2 |
| Mains to rains controller | Standard |
| Power Supply | 220-240 VAC / 50 Hz |
| Rated Power | 0.5kW |
| Pressure Controller | PM2 |
| Max. current consumption | 3.8-2.8 A |
| Water temperature range | 0-52°C (protect from freezing) |
| Self-priming | 4m |
| UV dosage @40mJ/cm2 | 54 Lpm |
| UV dosage @30mJ/cm2 | 70 Lpm |
| UV dosage @16mJ/cm2 | 130 Lpm |
| Pump Flow Rate | 86 Lpm |
| Connection | 1” BSP [25mm] |
| Weight | 99 kg |
|---|
