Puretec HYBRID-P3 – All-in-one UV, filtration with weather cabinet
$7,250.00
SKU: HRBRID-P3
Categories: Puretec, Rainwater Wholehouse Systems
20″, 1″ Connection, with pump (0.5 kW)

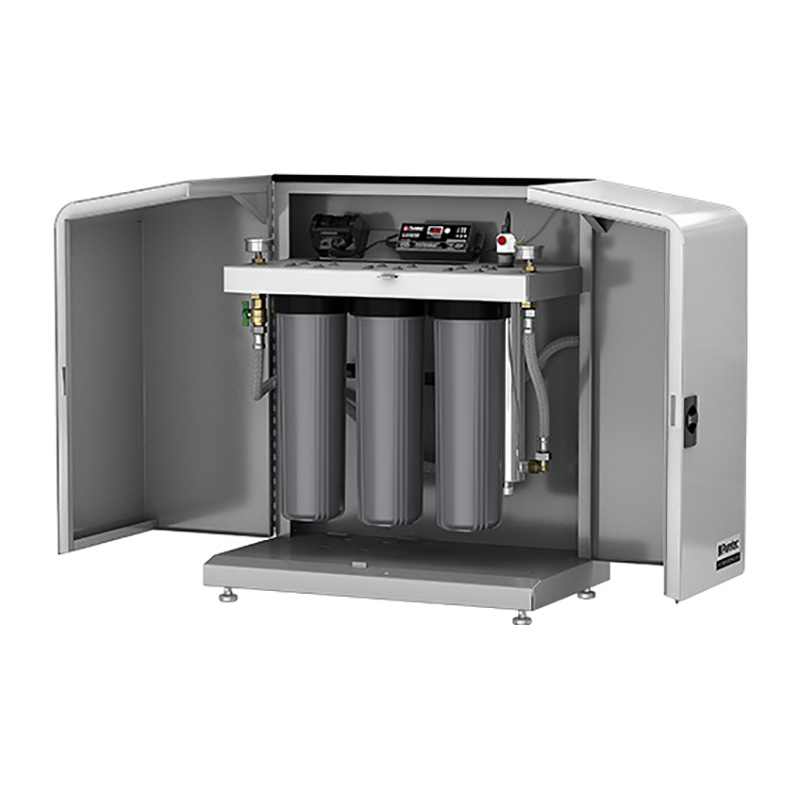

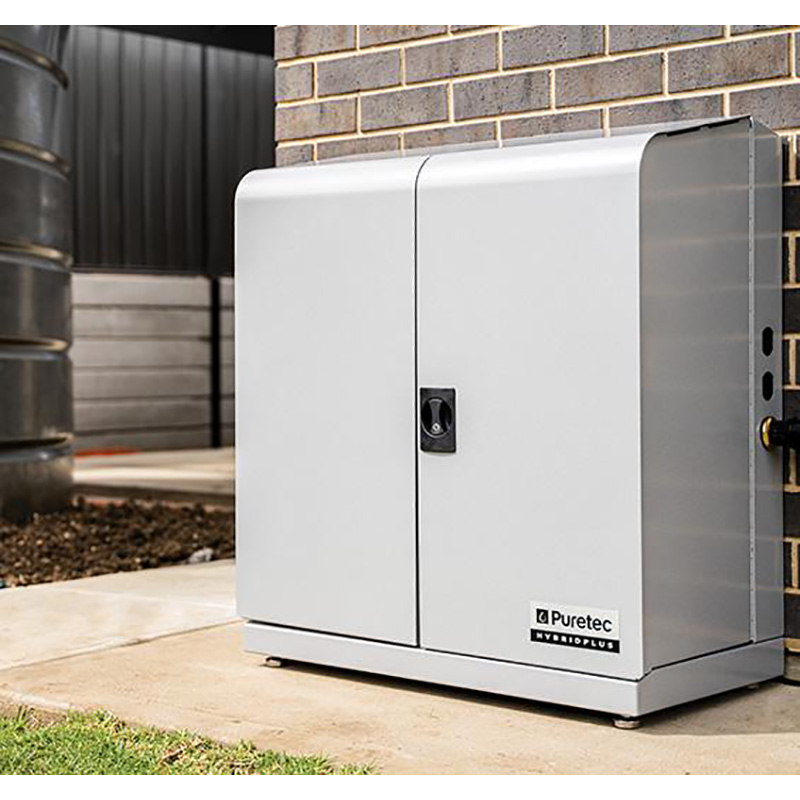

The Puretec Hybrid-P3 is an all-in-one filtration system including pump, 3 stage filtration and finishing with UV sterilisation. This sleek, practical and high-quality system ensures you have pressurised safe and delicious rainwater. The patented HybridPlus system is designed to sit neatly against a wall, fence or tank, or can also be freestanding. It features a lockable cabinet with gull-wing style access doors for ease of access for maintenance and also incorporates adjustable feet to ensure a neat and tidy finished installation.
Features & Benefits
- Designed specifically for rainwater, the Puretec HybridPlus is a complete plug & play package with pump, filters & UV in one unit that is weatherproof, rodent-proof, tamper proof and reduces pump noise.
- Bacteria protection – Kills 99.9% of E. Coli, Giardia and Cryptosporidium Cysts with Radfire ™ ultraviolet technology, natural process that’s completely eco-friendly and chemical-free.
- Unique connection system so that water flow can be connected to the left or right-hand sides for fast, easy and neat installation.
- Patented cabinet with gull-wing style access doors looks great whilst providing easy access for maintenance, is corrosion resistant and lockable to prevent tampering.
- Neatly concealed ventilation to allow airflow and heat dissipation.
- Suitable for other water supplies – depending on water quality (refer to Puretec Customer Care).
- View Online Brochure
Specifications
Replacement Cartridges | |
Stage 1 filtration | – PL05MP2 |
Stage 2 filtration | – CB05MP2 |
Stage 3 filtration | – PX01MP2 |
UV Lamp | RL6 |
Quartz Sleeve | RQS6 |
Grundfos pump model | CMB-SP 3-47 |
Pressure controller | PM2 |
Power Supply | 220-240 VAC / 50 Hz |
Rated Power | 0.5kW |
Pressure Controller | PM2 |
Max. current consumption | 3.1-2.8 A |
Water temperature range | 0-52°C (protect from freezing) |
Self-priming | 4m |
UV dosage @40mJ/cm2 | 54 Lpm |
UV dosage @30mJ/cm2 | 70 Lpm |
UV dosage @16mJ/cm2 | 130 Lpm |
Pump Flow Rate | 50 Lpm |
Connection | 1” BSP [25mm] |
Weight | 99 kg |
---|
